EX No.5.1.DESIGN THE 3D MODEL AS PROVIDED AND CONVERT TO ORTHOGRAPHIC VIEW

DATE: 09.01.23

AIM:

To create orthographic view of given 3D model

REQUIREMENTS:

1. Autodesk fusion 360
2. Windows 10
3. 16 GB of RAM (integrated graphics recommend 1 GB or more)
4. 2.5 Mbps or faster download; 500 Kbps or faster upload

PROCEDURE:

STEP-1:

Open Fusion 360 and select file and click new file

STEP-2:

Select sketch option and choose create sketch

STEP-3:

1. Create the sketch using circle, line, trim operations as shown in figure
2. Apply finish sketch

STEP-4:

Use the extrude option to convert the 2D to 3D.

STEP-5:

Switch to drawing mode from design mode

STEP-6:

1. Select the base view and position the model to project from base view
2. Select the projected view to generate orthographic projections

INPUT

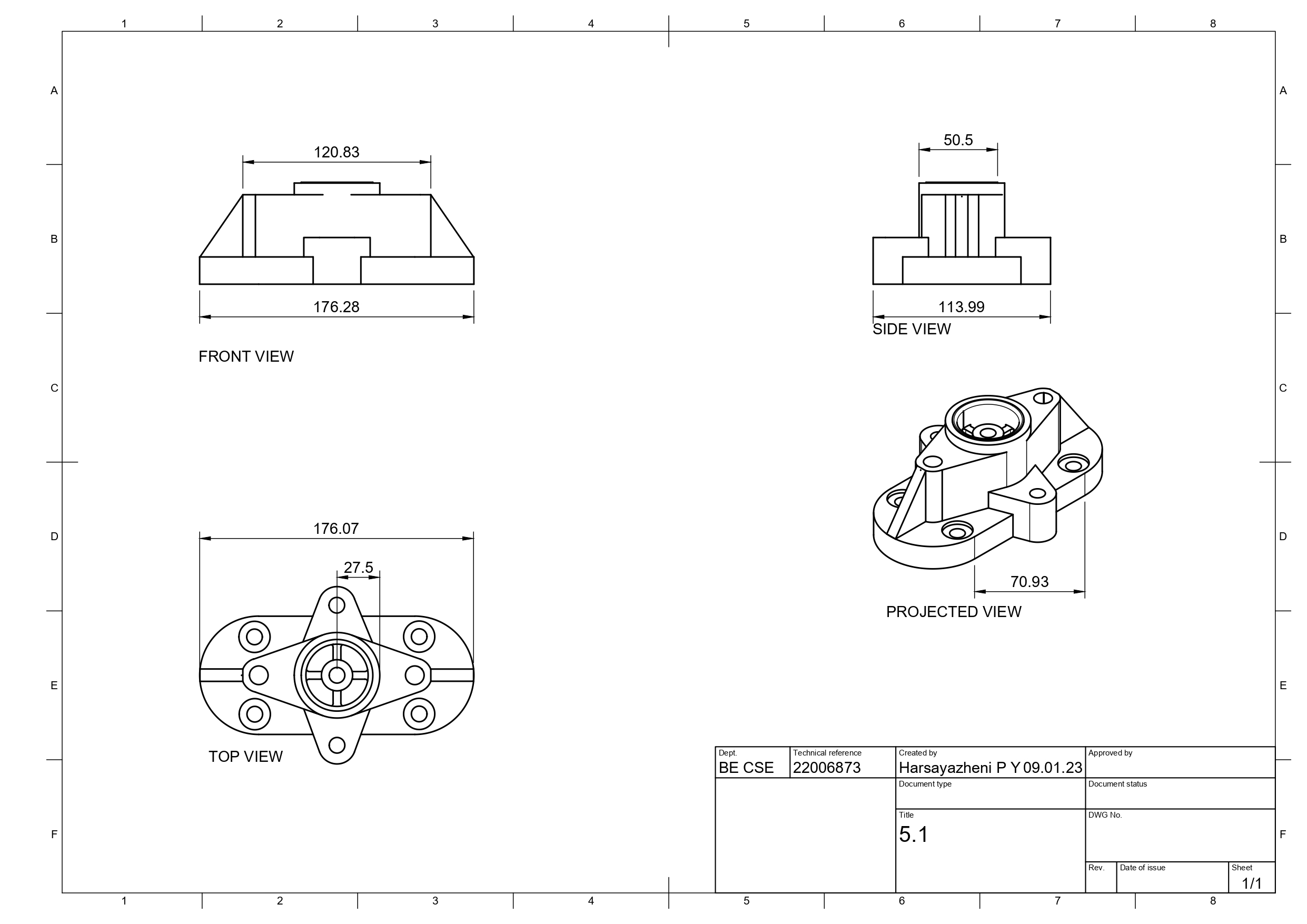

OUTPUT

RESULT:

Thus, the given 3D model is converted into orthographic view.
