Architecture Document

Version History

Version	Author	Modification	Modification Date
v0.1	Lucas Amoêdo	Create Document	26/03
v0.2	Lucas Amoêdo, Flávio, Antônio	Elaborate Use Case Diagram	26/03
v0.3	Lucas Amoêdo	Elaborate logical view diagram	26/03
v0.4	Antonio Carvalho	Updating user case diagram, user case brief discription	31/03
v0.5	Antonio Carvalho	Updating user case diagram and adding a new use case	31/03
v0.6	Leonardo Sagmeister	Add Class Diagram and links to the detailed use cases	07/05

1. Introduction

1.1 Purpose

This document describes the overall architecture of the TechVet application. It is intendend to guide the developers during the software's implementation, as well as to situate any other stakeholder to the system's architecture.

1.2 Scope

This document describes the entirety of the TechVet system, in an architectural point of view. It denotes the application's Use Cases and Class Diagrams, as well as its Logical View.

1.3 Definitions, Acronyms and Abbreviations

See the Glossary for term's definitions.

2. Use Case View

Following is the Use Case Diagram of the TechVet application.

The Atendant actor is an authorized employee, who interacts with a pet owner and the veterinarian, inserting relevant information into the system.

Identifier	Use Case	Brief Description
UC01	Maintain Owner	This use case allows the user to manage an Owner. This includes registering, consulting, editing and archiving an owner.
UC02	Maintain Patient	This use case allows the user to manage a Patient. This includes registering, editing, consulting and archiving a patient.
UC03	Maintain Clinical Record	This use case allows the user to manage Clinical Records. This includes registering, editing, consulting, archiving and selecting the type of the Clinical Record.
UC04	Maintain Bath and Grooming Record	This use case allows the user to manage Bath and Clip Sheets. This includes registering, consulting and editing Bath and Clip Sheets.
UC05	Maintain Appointment Record	This use case allows you to manage clinical appointments.
UC06	Login	This use case allows the user to enter the system through their user and password.
UC06	Evaluate Owner	This use case allows the user to evaluate an Owner, according to his or hers payment consistency.
UC07	View Hospitalization	This use case allows the user to consult the the clinic's hospitalization service, and hospitalized animals.
UC08	Generate Medical Presciption	In this use case the system generates a text file with the medication prescripted by the veterinarian.
UC09	Generate Exam Routing	In this use case the system generates an exam referral, if that exam is not performed by the clinic.
UC10	Generate Complete Report	In this use case the system generates a report, in text file format, containig all the information of the attendance, once it is done.
UC11	Load Exam File	This use case allows the user to perform an upload to the application of a text file containing the results of an exam.
UC12	View Vaccine Card	This use case allows visualizing the vaccination chart of the animal, with all vaccines and worming already taken.
UC13	View Vaccination Schedule	This use case allows the user to visualize the dates shceduled for vaccination.
UC14	Generate Financial Report	This use case allows to generate the financial report of the company, encompassing all the services provided.
UC15	Register Costs	This use case allows you to add cost information for services rendered.
UC16	Evaluate Owner	This use case allows an evaluation of the financial aspect of the owner.
UC17	Maintain Vaccination	This use case allows to manage the vaccination and worming of the animal.
UC18	Maintain User	This use case allows to manage all the users in the system.

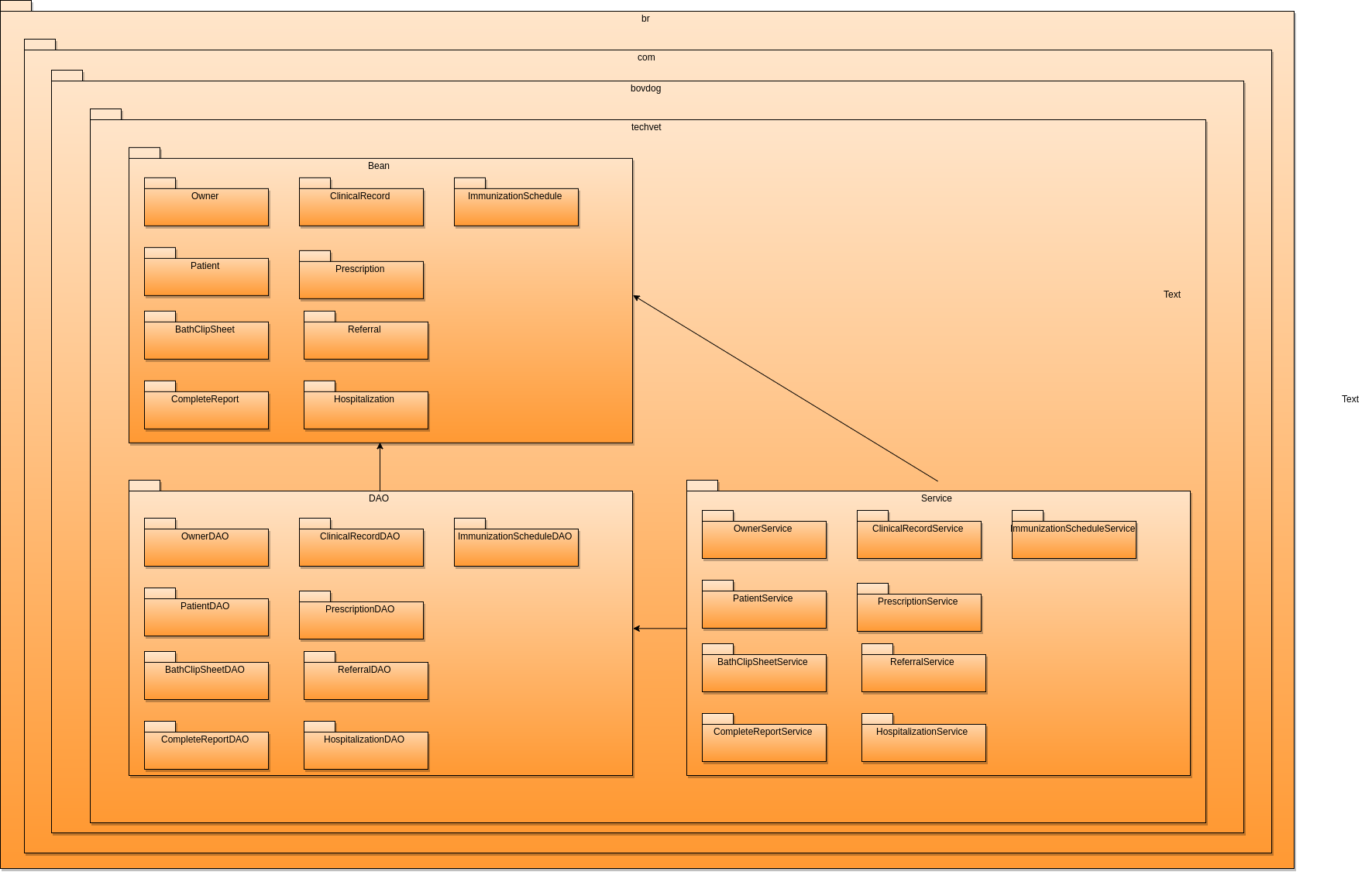

Logical View

3. Class Diagram

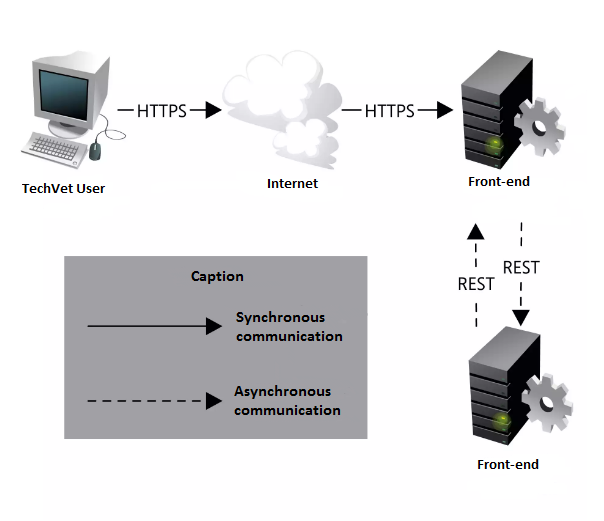

4. Implementation Vision
